DDLZ-520/420/320 Full Automatic (Stretch film) Vacuum Packing Machine

This machine is suitable for packing a variety of leisure food, such as, dried bean curd, sea food, sausage, peanuts, drumsticks, chicken claw, shrimp, egg etc.



Characteristics:



1. Mitsubishi Servomotor, Touch screen and PLC control system make operating and adjusting easily.

2. With a world first-class vacuum pump made in Germany, advantages include high degree of vacuum, steady quality and good durability.

3. With assembling moulds, which can be replaced easily, and different moulds can be installed on one machine.So that, the function of packing many kinds of foods in one machine is realized.

4. The mould is equipped with a cooling system.

5. Automatic film feeding.

6. With advanced transverse and longitudinal cutting system, making end products seperated with each other, and are of very good packaging effect.

7.Has a scrap recycling system, good environment and health can be maintained.



Model

DDLZ 520

DDLZ 420

DDLZ 320

Width of Upper Film

492mm

392mm

292mm

Width of Lower Film

522mm

422mm

322mm

Vacuum degree

≤200Pa

≤200Pa

≤200Pa

Compressed Air

≥0.6MPa

≥0.6MPa

≥0.6MPa

Cooling Water

≥0.15MPa

≥0.15MPa

≥0.15MPa

Power Source

380V

380V

380V

Weight of Whole Machine

2100KG

1700KG

1300KG

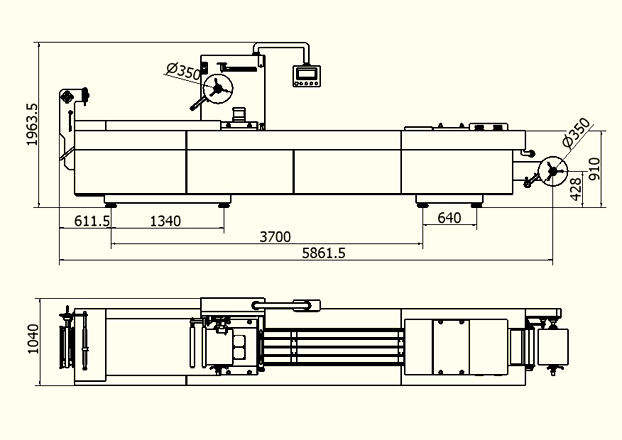

Overall Dimensions

6200×1400×1900mm

6150×1200×1900mm

5100×900×1800mm
